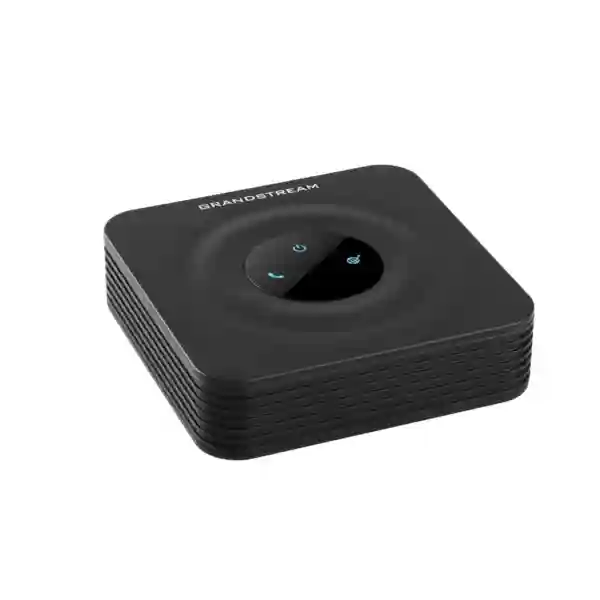

Grandstream HT801 Dubai – 1-Port Analog Telephone Adapter for SIP VoIP
The Grandstream HT801 Dubai is a compact one-port analog telephone adapter designed to connect a traditional analog phone or fax machine to a SIP-based VoIP platform. It provides one FXS telephone interface, one 10/100Mbps Ethernet port, secure SIP signaling and media options, automated provisioning, T.38 fax support, and practical telephony functions such as call waiting, forwarding, transfer, hold, do-not-disturb, and three-way conferencing. For businesses that want to retain a familiar analog endpoint while moving voice services onto an IP network, the HT801 offers a focused and manageable bridge without the complexity of a multi-port voice gateway.
Fourteck can help UAE customers evaluate where the HT801 fits within a wider IP telephony environment, confirm compatibility with the intended SIP service or PBX, and plan deployment requirements around network connectivity, dial plans, fax behavior, security, and provisioning. Buyers should also note that Grandstream currently lists both the original HT801 and an HT801 V2 family, so the exact hardware version should be confirmed before purchase, replacement, firmware planning, or fleet standardization.
Quick answer: when does the HT801 make sense?
A single analog phone or fax device that needs to register to a SIP service, IP PBX, or hosted voice platform through an Ethernet network.
One RJ11 FXS port for the analog endpoint and one 10/100Mbps auto-sensing RJ45 Ethernet port for IP connectivity.
Supports common voice codecs, HD-capable codecs including G.722 and Opus, and T.38 fax relay with G.711 fax pass-through fallback.
Supports SIP over TLS, SRTP, HTTPS, SSH, syslog, TR-069, XML configuration files, and automated provisioning workflows.
What problem does a one-port ATA solve?
Many organizations still have analog devices that remain useful even after the wider telephony environment has moved to SIP. Replacing every analog handset, lobby phone, security desk phone, apartment handset, fax device, or specialist analog endpoint may be unnecessary when the business only needs to give that device access to an IP voice service. An ATA converts the analog interface presented to the device into SIP signaling and RTP media on the IP network. The HT801 performs that role for one analog endpoint, which makes it easier to modernize a single line without deploying a larger gateway than the requirement demands.
That focused design is especially practical when a site has one legacy device at the edge of a modern voice deployment. Instead of treating the analog endpoint as a separate telephony project, the business can connect it through the HT801, assign the intended SIP account, apply the correct dial plan, and manage the device alongside the broader voice environment. This approach can be useful for phased migrations, remote offices, small branches, temporary projects, residential-style business locations, reception overflow, fax connectivity, and selective retention of analog equipment.
The key buying question is not simply whether an analog phone can be connected. The better question is whether the entire call path is compatible. The intended SIP platform must support the account and signaling requirements, the network must provide stable IP connectivity, firewall and NAT behavior must be considered, the chosen codec policy should fit the service, and fax deployments should be tested end-to-end. For that reason, Fourteck approaches the HT801 as part of a working voice solution rather than as an isolated adapter.
Verified HT801 technical specifications
| Telephone interface | One RJ11 FXS port |
|---|---|
| Network interface | One 10/100Mbps auto-sensing Ethernet port, RJ45 |
| SIP capacity | One SIP profile through the single FXS port |
| Audio conferencing | Three-way voice conferencing |
| Voice codecs | G.711, G.722, G.723.1, G.729A/B, G.726-32, iLBC, Opus, plus dynamic jitter buffer and line echo cancellation |
| Fax over IP | T.38 Group 3 fax relay up to 14.4kbps and automatic switch to G.711 fax pass-through |
| Security | SRTP media security, TLS/SIPS signaling support, HTTPS management, SSH, and secure provisioning capabilities |
| Provisioning | HTTP/HTTPS, TFTP, TR-069, XML configuration, and automated provisioning options |
| QoS | Layer 2 VLAN/802.1p and Layer 3 ToS/DiffServ support |
| Caller ID formats | Bellcore Type I and II, ETSI, BT, NTT, and DTMF-based caller ID |
| Power | 5V DC, 1A power requirement for the classic HT801 family documentation |
| Physical size | Approximately 100mm × 100mm × 29.5mm; published weight 102g for the classic HT801 datasheet |
Specifications can vary by hardware revision and firmware. Confirm the exact product label, revision, firmware path, and power accessory when replacing an installed unit or standardizing a larger deployment.
How the HT801 fits into a SIP voice architecture
A typical HT801 deployment has three functional layers. The analog endpoint connects to the FXS port using a standard telephone cable. The Ethernet interface connects the ATA to the organization’s router, switch, or LAN. The HT801 then registers its SIP profile to the intended IP PBX, hosted PBX, carrier platform, or compatible SIP service. Outbound dialing from the analog handset is interpreted through the configured dial plan and sent as SIP signaling. Incoming SIP calls are converted back into ringing and analog voice for the attached device.
This simple architecture is one reason the product remains useful in mixed analog and IP environments. The endpoint does not need to understand SIP, VLANs, TLS, codecs, or IP addressing. Those functions are handled by the adapter and network. At the same time, administrators gain access to modern controls around registration, failover server configuration, provisioning, security, call features, and monitoring. The result is a transition layer that allows an analog endpoint to participate in a digital voice environment while preserving the user experience of a conventional telephone or fax machine.
For Grandstream UCM deployments, Grandstream documents support for Zero Configuration provisioning with the UCM series. This can simplify supported deployment workflows, although administrators should still confirm firmware compatibility, network discovery conditions, extension policy, and any organization-specific configuration requirements. With third-party SIP systems, standard SIP interoperability can provide a strong foundation, but exact feature behavior should always be tested against the specific service, SBC, firewall, codec policy, and call routing design.
Five practical business deployment scenarios
1. Keep one trusted analog desk phone
A branch or back office may only need one conventional handset while the rest of the company uses IP phones. The HT801 allows that single device to join the SIP environment without buying a larger multi-port gateway.
2. Connect a fax device to VoIP
Where fax remains operationally necessary, the HT801 can provide an analog FXS interface with T.38 fax relay support. End-to-end fax success remains dependent on the provider, PBX, network, codec handling, and remote fax path.
3. Modernize a small remote location
A remote office with one existing analog phone can connect to a central or hosted SIP platform over the data network. This can reduce the need for a separate local telephony system at a very small site.
4. Support a phased migration
During PBX migration, not every endpoint must change on the same day. The HT801 can bridge one analog device while the broader environment moves toward IP phones, softphones, and unified communications.
5. Preserve a specialist analog endpoint
Some environments have simple analog devices whose replacement would deliver little operational benefit. Where the electrical interface and dialing behavior are compatible, an ATA can preserve that endpoint while changing the upstream voice platform.
Voice quality: what actually matters beyond the codec list?
The HT801 supports a broad codec set, but codec availability alone does not guarantee a good call. Voice quality depends on the complete path between the analog device and the remote party. Packet loss, latency, jitter, oversubscribed WAN links, poor Wi-Fi backhaul upstream of the wired ATA, incorrect QoS, overloaded firewalls, NAT instability, provider transcoding, and misconfigured echo behavior can all affect the user experience. A well-designed installation therefore starts with a stable LAN and WAN before fine-tuning codec preference.
G.711 can provide straightforward high-quality voice where bandwidth is sufficient, while compressed codecs may be useful in bandwidth-constrained scenarios if supported by the SIP provider. G.722 and Opus support can provide wideband capability in compatible end-to-end paths, but the analog endpoint, network, PBX, provider, and far-end device all influence the final result. Dynamic jitter buffer and echo-cancellation capabilities can help the ATA cope with real-world analog and IP conditions, yet they should complement good network design rather than replace it.
For enterprise networks, VLAN and QoS policy can be especially relevant. The HT801 supports 802.1Q VLAN tagging and 802.1p priority at Layer 2 along with ToS and DiffServ mechanisms at Layer 3. Organizations that already separate voice traffic can incorporate the ATA into their existing policy, subject to switch configuration and network architecture. During troubleshooting, administrators should verify addressing, default gateway, DNS, SIP registration, NAT path, RTP flow, codec negotiation, and packet-loss behavior in a structured sequence.
Security and provisioning for business environments
Analog endpoints are simple, but the network-facing side of an ATA is still part of the organization’s IP infrastructure. The HT801 supports security mechanisms such as TLS for SIP signaling, SRTP for media, HTTPS for management, and SSH for administration. Whether these mechanisms are used depends on the design and the capabilities of the SIP platform. A business deployment should avoid exposing the management interface directly to the public internet, should use strong administrator credentials, and should keep device firmware and provisioning practices aligned with the organization’s change-control process.
Automated provisioning is particularly valuable when the ATA is deployed at more than one site. Grandstream documents TR-069, XML configuration files, HTTP/HTTPS, TFTP, and secure provisioning options. Service providers and IT teams can use these mechanisms to standardize SIP server addresses, extension credentials, dial plans, regional tones, feature codes, codec preferences, syslog targets, and upgrade policies. The exact provisioning architecture should be selected according to scale, security requirements, ownership of the device, and the management platform available to the customer.
SIP failover is another useful capability. Grandstream documents automatic failover to a secondary SIP server if the primary server becomes unavailable. This can contribute to a more resilient voice design, but it should not be treated as complete business continuity by itself. DNS, WAN redundancy, SBC availability, power, switching, firewall paths, SIP trunk behavior, and the availability of the upstream PBX or hosted service all remain part of the service chain. Fourteck can help customers review the complete voice path rather than relying on one device-level failover feature.
Fax over IP: what buyers should know before deployment
Fax traffic is more sensitive to network behavior than ordinary voice. The HT801 supports T.38 Group 3 fax relay and can switch to G.711 fax pass-through, but successful transmission requires cooperation across the entire path. The PBX, SIP trunk provider, remote network, and receiving fax environment can influence reliability. For this reason, buyers should avoid assuming that a T.38-capable ATA automatically guarantees fax compatibility with every provider.
A practical implementation starts by confirming whether the SIP carrier supports T.38 and how it expects re-INVITE or media negotiation to occur. The engineer should then verify codec policy, packetization, NAT behavior, firewall timeout handling, and any SBC rules. Fax speed may need to be tuned depending on the line and service. Test calls should include both sending and receiving, short and multi-page documents, and destinations on different networks when fax is business-critical. If the application has regulatory or operational importance, the organization should define a fallback process rather than rely on an untested path.
HT801 vs HT802 vs HT812 vs HT813: choosing the right form factor
| Model | Analog interfaces | Network | Best-fit requirement |
|---|---|---|---|
| HT801 | 1 FXS | 1 × 10/100Mbps Ethernet | One analog phone or fax endpoint |
| HT802 | 2 FXS | 1 × 10/100Mbps Ethernet | Two analog endpoints on one compact ATA |
| HT812 | 2 FXS | Dual Gigabit Ethernet plus integrated NAT routing capability | Two analog ports with more capable network connectivity |
| HT813 | 1 FXS + 1 FXO | Dual 100Mbps LAN/WAN ports | A deployment that needs both an analog station port and an analog line interface |
Choose the model by interface requirement first. If only one analog endpoint must join a SIP environment, the HT801 is the cleanest fit. If two analog devices are needed, the HT802 avoids using two separate one-port ATAs. If routing or dual Gigabit interfaces matter, the HT812 family is more suitable. If the requirement includes an FXO interface for an analog PSTN line or PBX trunk scenario, the HT813 belongs to a different use case. Confirm the exact current hardware generation and supported firmware before standardizing a new deployment.
Original HT801 and HT801 V2: confirm the version before ordering
Grandstream currently maintains product information for both the HT801 and HT801 V2. They share the same basic one-port ATA role, but organizations should not assume that every firmware image, hardware detail, accessory, provisioning behavior, or lifecycle consideration is identical across generations. If a customer is replacing an existing unit, the best practice is to capture the model label, hardware revision, current firmware version, SIP provider details, and existing configuration before selecting the replacement.
This is particularly important in managed fleets. A service provider may have templates, certificates, provisioning URLs, or upgrade policies that were built around one hardware generation. A new unit should therefore be tested against the established provisioning process before bulk rollout. Fourteck can help customers compare the exact unit offered against the installed estate and intended platform rather than relying only on the HT801 family name.
Dubai and UAE deployment considerations
For a Grandstream HT801 Dubai deployment, the physical adapter is only one part of the project. UAE customers commonly need to align the ATA with an existing IP PBX, hosted PBX, SIP trunk, office firewall, structured network, and branch connectivity. Before installation, identify where the SIP server is located, whether the ATA will register directly to a hosted platform or through an SBC, what VLAN and QoS policy applies, and whether remote management is permitted by the organization’s security policy.
In Dubai offices, a one-port ATA is often attractive when there is a very specific legacy requirement rather than a large analog estate. A reception back office may retain one analog handset, a warehouse may need a straightforward phone in a fixed location, or a small branch may keep an existing device during a broader migration. In each case, the right design should account for power availability, switch placement, patching, DHCP or static addressing policy, internet resilience, and support ownership.
For Abu Dhabi, Sharjah, Ajman, Deira, Bur Dubai, and multi-emirate operations, standardization can matter more than the individual unit cost. A common configuration template, documented extension naming convention, consistent dial plan, agreed firmware baseline, and central monitoring process can make even small ATA deployments easier to support. For larger rollouts, businesses should document device serial numbers, site assignments, extension mapping, provisioning method, administrator ownership, and replacement procedures.
Regional procurement should also distinguish between a request for the physical ATA and a request for a working VoIP solution. The second may involve SIP account creation, PBX configuration, switch or VLAN work, firewall review, extension planning, fax validation, user testing, and post-installation support. Fourteck can scope these items according to the customer’s environment instead of assuming every HT801 deployment has the same requirements.
Installation workflow for a controlled business rollout
- Confirm the endpoint. Identify the analog phone or fax device, its location, dialing requirement, caller ID expectations, and any business-critical behavior.
- Confirm the SIP platform. Record the SIP registrar, proxy or SBC requirements, authentication credentials, transport, codec policy, DTMF method, and failover design.
- Prepare the network. Confirm DHCP or static addressing, DNS, VLAN, QoS, firewall policy, NAT behavior, and reachability to the SIP service.
- Connect the hardware. Attach the analog device to the FXS port, connect Ethernet to the LAN, and use the correct power supply for the exact hardware version.
- Apply configuration. Configure manually or through the selected provisioning platform. Use secure management and signaling options where supported by the service design.
- Validate registration. Confirm that the SIP account registers correctly and remains stable through normal network conditions.
- Test calling. Verify inbound and outbound calls, caller ID, DTMF, transfer or feature codes, hold, call waiting, and the expected codec behavior.
- Test fax if applicable. Validate send and receive behavior with representative destinations and confirm whether T.38 or G.711 pass-through is being used.
- Document and hand over. Record device identity, extension, site, firmware, configuration owner, support path, and recovery process.
Common deployment mistakes to avoid
Choosing by port count alone. One FXS port may be physically sufficient, but SIP platform compatibility, fax requirements, network architecture, and management standards still determine whether the design works.
Assuming all HT801 hardware is identical. The original HT801 and HT801 V2 should be treated as distinct hardware generations for firmware and fleet-management purposes unless compatibility has been confirmed.
Ignoring NAT and firewall behavior. A registered SIP account can still suffer one-way audio, failed inbound calls, or intermittent media if RTP and NAT handling are incorrect.
Using fax without testing the full path. T.38 support on the ATA does not guarantee that the provider or far-end path will behave the same way.
Leaving management exposed. Web administration should not be unnecessarily reachable from the public internet. Credentials and remote-access controls should follow the customer’s security policy.
Deploying without documentation. Even a one-port adapter should be recorded in the voice inventory so future support teams know its site, extension, firmware, and provisioning ownership.
Troubleshooting guide for IT teams
The phone has no dial tone
Check power first, then verify that the analog cable is connected to the correct FXS port and that the handset itself is functional. Confirm that the ATA has completed booting and that the PHONE indicator reflects the expected state. If the hardware is reachable by IP, review the port and account status before changing SIP settings.
The SIP account will not register
Verify IP address, default gateway, DNS, registrar address, SIP username, authentication ID, password, transport, and outbound proxy requirements. Check whether the firewall blocks the chosen SIP transport or whether the provider restricts registrations by IP, location, device, or concurrent session count. Syslog and SIP traces can help isolate authentication, DNS, timeout, or transport problems.
Calls connect but audio is one way
One-way audio usually points to RTP path problems rather than the analog handset itself. Review NAT, firewall rules, SIP ALG behavior, SBC configuration, advertised media addresses, and routing between the ATA and the remote media endpoint. Disabling or enabling SIP ALG should be based on the environment rather than done blindly.
DTMF does not work correctly
The HT801 supports in-audio DTMF, RFC2833, and SIP INFO methods. The ATA, PBX, SIP trunk, and IVR path need compatible settings. Mismatched DTMF methods are a common reason users can place calls but cannot navigate automated menus.
Fax fails intermittently
Determine whether the session is using T.38 or G.711 pass-through, check packet loss and jitter, confirm provider support, test lower fax speeds if appropriate, and compare results across destinations. Fax troubleshooting should be treated as an end-to-end service test, not merely an ATA configuration check.
Procurement checklist before requesting a quotation
To quote and plan the correct solution, it helps to provide more than the model number. A useful requirement includes the number of analog endpoints, whether each endpoint is a phone or fax, the intended PBX or SIP provider, the deployment location, whether configuration services are required, and whether the order is a new installation or replacement for an existing ATA. Replacement projects should include a photo or written record of the current model and power adapter where practical.
- Required quantity of HT801 units
- Original HT801 or HT801 V2 requirement, if a specific generation is mandatory
- Analog endpoint type: telephone, fax, or other supported analog device
- SIP platform or PBX brand and version
- Hosted SIP service or trunk provider details where relevant
- Need for configuration, provisioning, or PBX integration
- Need for VLAN, QoS, firewall, or remote-site assistance
- Fax testing requirement
- Deployment cities or branch count
- Support, documentation, and handover expectations
Fourteck can use this information to recommend whether the HT801 is the correct device or whether a multi-port ATA or gateway would better fit the project. This requirement-led approach is especially useful when several branches have different analog port counts.
Frequently asked questions
What is the Grandstream HT801?
The HT801 is a one-port analog telephone adapter that connects a traditional analog phone or fax machine to a SIP-based VoIP service through an Ethernet network.
How many analog ports does the HT801 have?
It has one RJ11 FXS port, so it is designed for one analog endpoint.
How many SIP profiles does the HT801 support?
Grandstream specifies one SIP profile through the single FXS port.
Can I use the HT801 for a fax machine?
Yes. The HT801 supports T.38 fax relay and G.711 fax pass-through. Actual fax reliability depends on the PBX, SIP provider, network, and far-end fax path, so end-to-end testing is recommended.
Does the HT801 support encrypted VoIP?
It supports TLS for secure SIP signaling and SRTP for encrypted media when the connected SIP platform is configured to use those mechanisms.
Can the HT801 work with Grandstream UCM IP PBX systems?
Yes. Grandstream documents Zero Configuration provisioning support with the UCM series. Exact behavior should be confirmed against the UCM model, firmware, and deployment design.
Can the HT801 work with a third-party SIP PBX?
The HT801 is based on standard SIP and is commonly used with SIP platforms, but specific interoperability depends on the PBX, provider, transport, codec, authentication, NAT, and feature requirements. Compatibility should be validated for the intended platform.
What is the difference between HT801 and HT802?
The HT801 has one FXS port, while the HT802 has two FXS ports. If two analog endpoints are required, the HT802 is normally the more natural form factor.
Is the HT801 a router?
The classic HT801 is a one-port ATA with a single 10/100Mbps Ethernet interface. Buyers needing integrated routing should evaluate models designed with that capability rather than assuming the HT801 provides a full router function.
Does the HT801 support remote provisioning?
Yes. Grandstream documents automated provisioning options including TR-069 and XML configuration files, along with HTTP, HTTPS, and TFTP-based provisioning methods.
Is HT801 the same as HT801 V2?
No. Grandstream currently lists an HT801 product and an HT801 V2 product. They perform the same general one-port ATA role, but the exact hardware generation and firmware path should be confirmed before ordering or replacing units.
Where can I request Grandstream HT801 Dubai pricing and deployment assistance?
You can contact Fourteck with the required quantity, SIP platform, endpoint type, and deployment location. The team can help scope the ATA, configuration, PBX integration, and network requirements before a quotation is prepared.
Plan your HT801 deployment with Fourteck
If your requirement is to connect one analog phone or fax machine to a modern SIP environment, Grandstream HT801 Dubai can be a practical option when the surrounding network and SIP platform are correctly designed. Share your endpoint type, PBX or hosted VoIP platform, quantity, branch location, and whether you need configuration or fax validation. Fourteck can help confirm the right ATA form factor and define the implementation scope without making unsupported assumptions about stock, pricing, or compatibility.
